Machinery

Heavy machinery enhances field operations by providing powerful, reliable solutions for drilling, aquatic maintenance, and automated control—improving efficiency, precision, and productivity across diverse industrial and environmental applications.

Drilling Rig Truck Mounted
Weed Harvester
Automatic Control Systems

Heavy machinery in this category is engineered to support demanding field operations with precision and reliability. From truck-mounted drilling rigs that deliver deep, stable penetration to weed harvesters designed for efficient aquatic vegetation control, each system is built to perform in challenging environments while reducing manual effort.

Complemented by advanced automatic control systems, these solutions help operators maintain accuracy, safety, and consistency in every task. Together, they improve productivity, streamline workflows, and support long-term operational performance across industrial and environmental projects.

Drilling Rig Truck Mounted


About Truck Mounted Drilling Rig

A truck-mounted drilling rig is a mobile drilling system designed for fast deployment and efficient operation in various field environments. Built on a heavy-duty truck chassis, the rig integrates a drilling mast, hydraulic systems, control units, and support equipment into a single compact platform. It is capable of performing deep drilling operations while offering high mobility, stable performance, and ease of setup, making it suitable for water well drilling, geotechnical work, and exploration projects.

Our Features

  1. Drilling depth capacity up to 600 meters for versatile field operations.
  2. 6x4 truck configuration provides strong mobility and load stability.
  3. Hydraulic breakout system ensures efficient tool joint handling.
  4. Minimum torque of 8,300 Nm for demanding drilling tasks.
  5. Pump capacity of 750 LPM supports continuous drilling flow.
  6. Top drive system delivers smooth and controlled drilling performance.
  7. Compatible with multiple wing and tricone drill bit sizes.
  8. 3½-inch drill pipe with 50-meter handling capacity.
  9. Four hydraulic leveling jacks stabilize rig on uneven ground.
  10. Hydraulic single-drum winch with 15,240 kgf pulling capability.

Drill Bit Size

  • Wing Bit: 7 7/8 , 10 5/8 , 12 1/4 inchi
  • Tricone Bit: 7 7/8 , 10 5/8 , 12 1/4 inchi

Weed Harvester

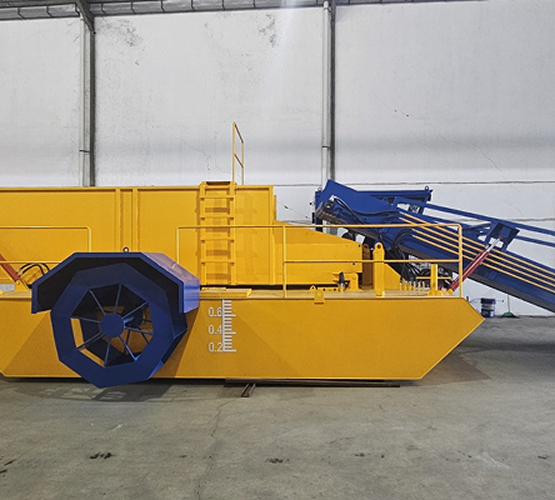

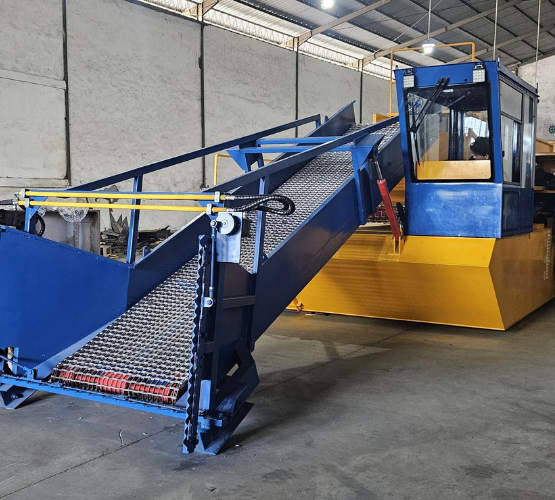

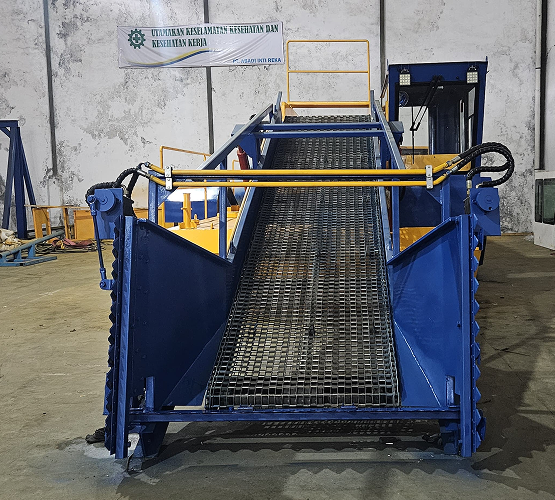

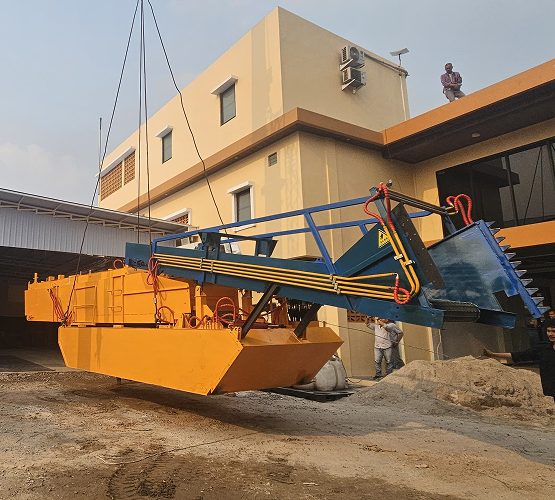

About Weed Harvester

A machine weed harvester is designed to efficiently remove aquatic vegetation from lakes, rivers, and reservoirs. Using a front-mounted cutting system and conveyor mechanism, it collects and transports weeds directly onto the vessel for easy offloading. This equipment helps restore water flow, improve ecosystem balance, and support maintenance of waterways for irrigation, tourism, and environmental management.

Our Features

  1. Highly efficient harvesting of water hyacinth and various floating waste
  2. Large total capacity: 10-12 m³ (rear conveyor + front conveyor)
  3. Fully automatic loading and unloading, operable by only one operator
  4. Paddle wheel propulsion to prevent stalling caused by entangled debris
  5. Fuel-efficient operation using the main 45.5 kW / 73 HP engine
  6. Full hydraulic system for smooth and reliable operation
  7. Real-time IoT monitoring system (fuel level, speed, oil condition, engine running time, GPS location, and more)
  8. 24-hour live monitoring of machine condition and unit position
  9. Solar-powered monitoring system, independent from the main engine power

Specifications

  1. Model : Weed Harvester AIR-8
  2. Capacity : 10-12 m³ total (front and rear conveyors)
  3. Propulsion : Paddle Wheel
  4. Engine Power : 45.5 kW / 73 HP
  5. Fuel Consumption : ± 6 liters/hour (diesel)
  6. System Type : Full Hydraulic System
  7. Monitoring: Solar-powered IoT live monitoring (machine status & location)

Automatic Control Systems


About Automatic Control System

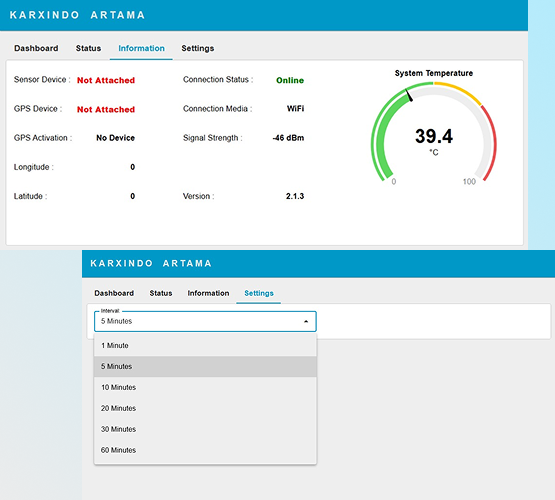

Our automatic control systems deliver real-time monitoring and smart automation for diverse environments. From analog and machine status tracking to IoT-based weather and river stations, each solution enhances visibility and decision-making. Integrated parking systems and smarthome automation further improve efficiency, safety, and convenience across daily operations and industrial activities.

Products

  1. Analog System Monitoring

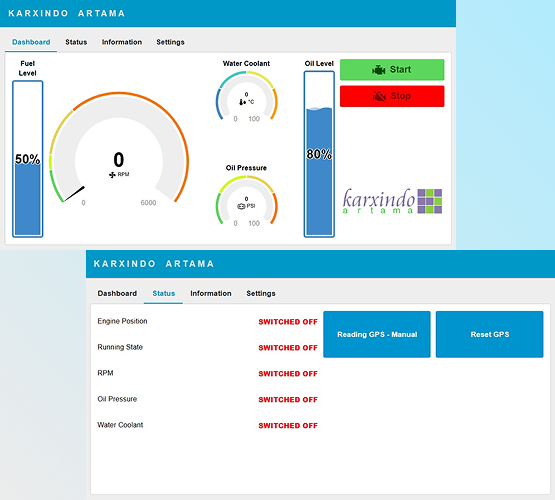

  2. Machine Monitoring (GPS, Oil, Fuel, Running Time)
  3. IoT Weather Monitoring Station
  4. IoT River Monitoring Station
  5. IoT Rain Monitoring Station
  6. Parking System
  7. Smarthome
